Custom Cup Brushes

Custom Cup Brushes

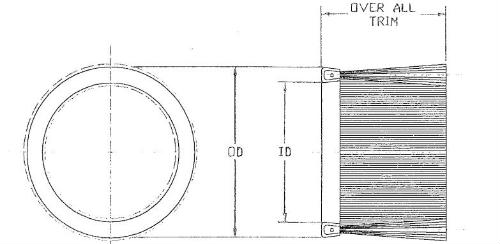

Industrial Cup Brushes

Cup Type brushes are another widely-used configuration. These are most commonly seen as vacuum head attachments, as drill and router head guards, and as specialty cleaning devices.

Metal Backing Materials

  • Electro-Galvanized Steel
  • Stainless Steel

Fill Materials

  • Nylon 6, 6.6, 6.12
  • Polypropylene
  • Polystyrene
  • Tampico
  • Horse Hair
  • Wire
  • Other materials available upon request

Channel Backing Design Data

#10 Custom Cup Brushes Channel Backing 7/16 #7 Custom Cup Brushes Channel Backing 5/16 #5 Custom Cup Brushes Channel Backing 7/32 #4 Custom Cup Brushes Channel Backing 3/16 #3 Custom Cup Brushes Channel Backing 5/32
#10 #7 #5 #4 #3
STRIP BACKING SIZES BEFORE FORMING
1 1/4" x
.050
7/8" x
.035
5/8" x
.037
1/2" x
.030
.425 x
.025
STRIP BACKING SIZES AFTER FORMING
Approximate Width 7/16"
(.437)
5/16" (.312) 7/32" (.218) 3/16" (.187) 5/32" (.156)
Approximate Height 1/2"
(.500)
5/16" (.312) 1/4"
(.25)
7/32" (.218) 5/32" (.156)
Minimum O/A Height* 3/4" 1/2" 7/16" 3/8" 5/32"
Maximum O/A Height* 14" 12" 10" 8" 6"
Filament Size Range .003 - .072 .003 -
.050
.003 -
.040
.003 -
.032
.003 -
.024
