Outside Disk Brushes

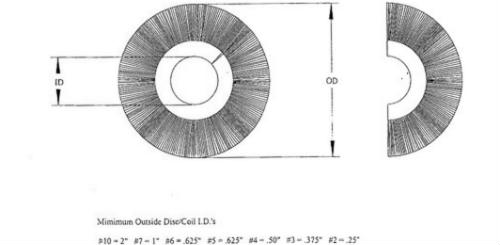

Outside Disk BrushesOutside disk brushes are single coils that may be used individually or ganged in multiples. Applications include product separating, product guiding, cleaning and polishing.

Metal Backing Materials

  • Electro-Galvanized Steel
  • Stainless Steel

Fill Materials

  • Nylon 6, 6.6, 6.12
  • Polypropylene
  • Polystyrene
  • Tampico
  • Horse Hair
  • Wire
  • Other materials available upon request

Channel Backing Design Data

#10 Outside Disk Brushes Channel Backing 7/16 #7 Outside Disk Brushes Channel Backing 5/16 #5 Outside Disk Brushes Channel Backing 7/32 #4 Outside Disk Brushes Channel Backing 3/16 #3 Outside Disk Brushes Channel Backing 5/32
#10 #7 #5 #4 #3
STRIP BACKING SIZES BEFORE FORMING
1 1/4" x
.050
7/8" x
.035
5/8" x
.037
1/2" x
.030
.425 x
.025
STRIP BACKING SIZES AFTER FORMING
Approximate Width 7/16"
(.437)
5/16" (.312) 7/32" (.218) 3/16" (.187) 5/32" (.156)
Approximate Height 1/2"
(.500)
5/16" (.312) 1/4"
(.25)
7/32" (.218) 5/32" (.156)
Minimum O/A Height* 3/4" 1/2" 7/16" 3/8" 5/32"
Maximum O/A Height* 14" 12" 10" 8" 6"
Filament Size Range .003 - .072 .003 -
.050
.003 -
.040
.003 -
.032
.003 -
.024
